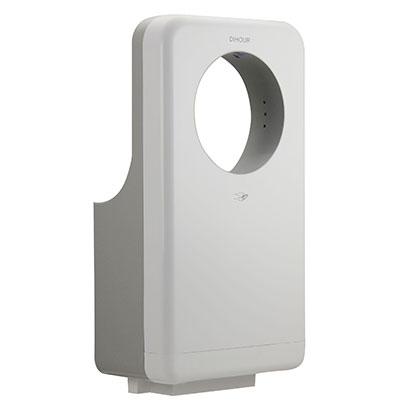

Three Side High Speed Jet Air Hand Dryer Brush Motor Type DH9988H

DIHOUR energy efficient hand dryers

Model: DH9988H
Motor: Brush motor,Life time:1-2 years
Air speed:90-135m/s
Drying time: 7-10 seconds
Antibacterial ABS plastic material
Filter: Antibacterial HEPA Filter


  • Specifications
  • packaging picture
  • product certificate
  • FAQ
  • Comments




  • OPERATION
    		CONSTRUCTION
    Automatic Touch Free,Infra-red controlEnclosure-ABS with anti-bacterial additive
    Noise level-Min65db to 78db@1mColour-White or metallic silver
    Dry Time-5-10sWater ingress protection-IPX4 WARRANTY
    Air Speed-90-135M/SAir Filter-Washable type
    ELECTRICALDIMENSIONS AND SIZE
    Voltage-220-240V AC 50/60HzNet weight-8kg
    Rated Power-1050-1450WDepth-318mm
    Motor Type-BrushSize-185mm(wide)618mm(height)
    CertificateWarranty
    CE,ROSHBrush motor 1 years,whole machine 1 year.


    This hand dryer is a new circular appearance, the body is made of ABS with antibacterial plastics. The energy efficient hand dryers model is DH9988H.Not like traditional hand dryer, it’s three sides jet high speed air to dry your hands that can let dry hands as washing. It has unique way of absorbing water, using antibacterial ceramic to Water absorption. energy efficient hand dryers Can reduce the maintenance time.




  • Problem1

    No air blows even if hands are inserted.

    Check
    Do the display indicators lights up?
    Is the power switch on?
    Are you puttting your hands all the way in?


    Action
    Turn the ground-fault circuit breaker on.
    Turn the power switch on.
    Put hands all the way in.




    Problem2

    No hot wind


    Check
    There is a Built-in heater in the unit.Anydirt on heating sensor?
    Fuse inside terminal box blown?

    Action
    Is the ambient temperature higher than 20℃?
    Switch off power,removefront cover. There is a terminal box inside.Take down the cover of terminal boxinside.Take down the cover of terminal box.Check the fuse inside box which isblown or not.




    Problem3

    Airflow is too low?


    Check
    Is the speed button on low level?

    Action
    Put speed button on the high level.

    Ifthe above actions do not work,turn off the power and the ground-fault circuitbreaker,and call your dealer to inspect and repair it if necessary.(Costs areas per agreement with the dealer)
