Home > ABS Plastic High Speed Hand Dryer DH2630T

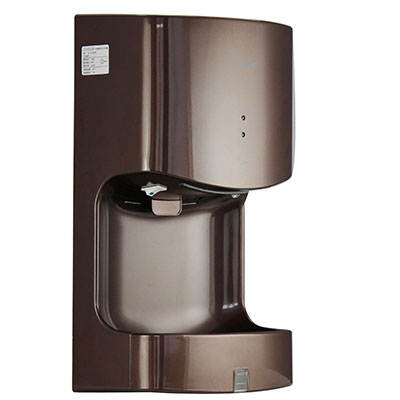

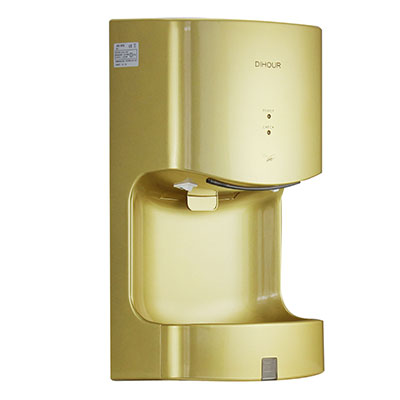

ABS Plastic High Speed Hand Dryer DH2630T

Cold Air Hand Dryers/warm air hand dryers

Model:DH2630T

Rated Power:1300W
Air Speed:100m/s
Dry time:10-15s

Material: Antibacterial ABS plastic
can change to Cold Air Hand Dryer or warm air hand dryer

Manual download
Manual download

  • Specifications
  • FAQ
  • VIDEO
  • Comments


  • Material:ABS Plastic
    		Voltage:220V/50HZ or 110V/60HZ
    Motor type:Brush motorOperation:Touch-free infra-red activation
    Drying time:8~12 secondsMaterial:Anti-bacterial treatment ABS
    Dimension:250*165*470MMWeight:5.2kgs
    Rated Power:1300W


    The single Cold Air Hand Dryers/warm air hand dryers is classical model. Antibacteria material，high efficiency,economical operation with easy maintenance.Could be installed in a variety of locations.Fast drying hand in 10 seconds means less energy required and cost saving.The hand dryer is touch means hygiene. with switch can be change Cold Air Hand Dryer or warm air hand dryer

  • IF hand dryer does not turn on

    Answer:


    Check is the power supply is connected and grounded properly; ensure correct voltage.
    Hand Dryer maybe installed too close to a sink or other reflective surface.Turn off the power for about 10-15 seconds,then turn it back on.
    Clean the sensor or replace it if necessary.
    The control board connecting line maybe loose check,and replace if necessary.
    The motor maybe damaged-check and replace the motor if necessary.


    IF hand dryer has heat but no air blowing out

    Answer:


    The motor maybe damaged-check,and replace the motor if necessary.
    The control board connecting line may be loose check,and replace if necessary.


    IF hand dryer has only cold air blowing out

    Answer:


    Check for loose connections to heating element,
    Heating element may be damaged-check,and replace if necessary.
    The control board connecting line may be loose-check,and replace if necessary.


    IF hand dryer turns on by itself

    Answer:


    Hand Dryer maybe installed too close to a sink or other reflective surface.
    Hand Dryer might be installed in direct sunlight which may triffer the sensor.
    Check for the control circuitboard wiring not to be loose or damaged.Replace if necessary.
    Clean the sensor,replace if necessary.


    IF HAND DRYER CONTINUOUSLY WORKS AND WON’T STOP

    Answer:


    Hand Dryer maybe installed too close to a sink or other reflective.Turn off the power for about 10-15 seconds,then turn it back on.
    Clean the sensor,replace if necessary.




    IF HAND DRYER HAS LOSS OF AIR SPEED

    Answer:


    Check the filter,clean it if necessary. Refer to the Mainternance Section for instructions.
    The motor may be damaged-check,and replace the motor if necessary.
    Check for a burning smell,if so replace the motor.

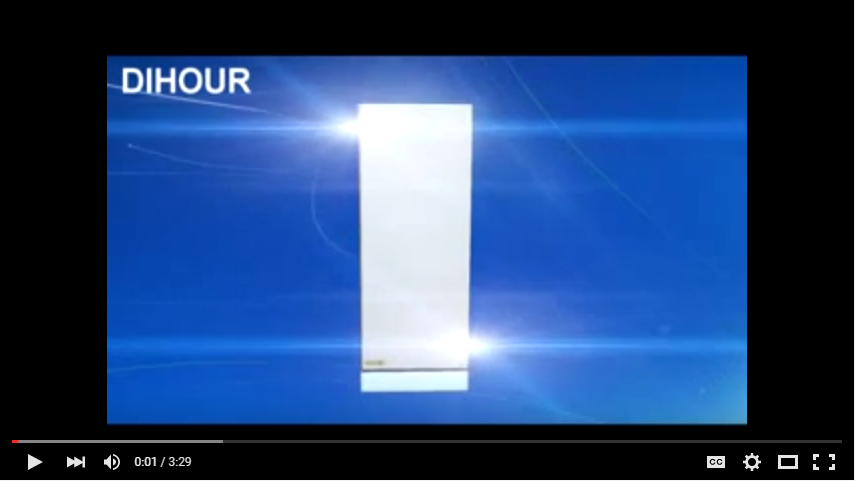

  • VIDEO
